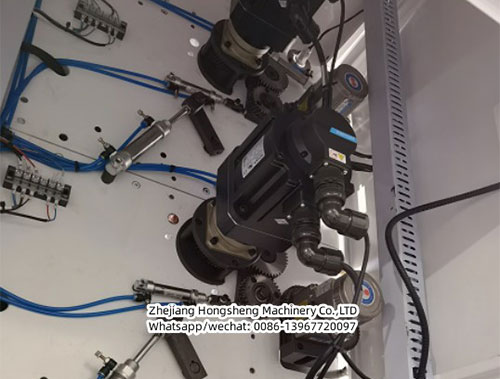

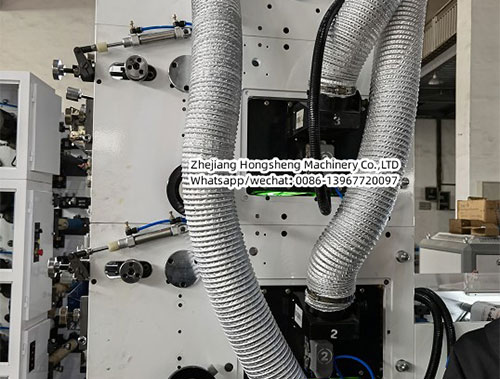

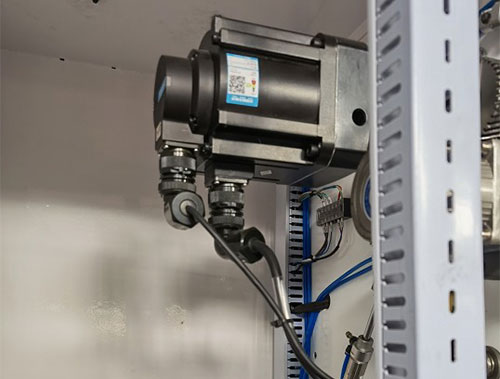

HSS-320-4C-UV-S Flexo Label Printer, featuring 4-color printing capability with four UV dryers, where each printing station is equipped with its own servo motor and UV dryer.
Each printing station has one UV dryer.
Working principles:
Unwinding→ Web guide→ Printing Unit→ IR/UV dryer→ Cold foil (optional)→ Laminating(optional)→ Die cut→ Waste (optional)→ Rewinding
|
Model |
HSS-320-4C |
|
Max.Web Width |
320mm |
|
Max.Printing Width |
310mm |
|
Printing Length |
177.8-368.3mm/206-460mm/238-539mm |
|
Max.Unwinding Diameter |
600mm |
|
Max.Rewinding Diameter |
600mm |
|
Max.speed |
100m/min |
|
Precision of Chromatography |
± 0.1mm |
|

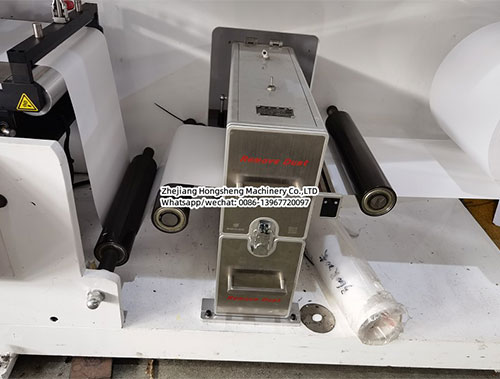

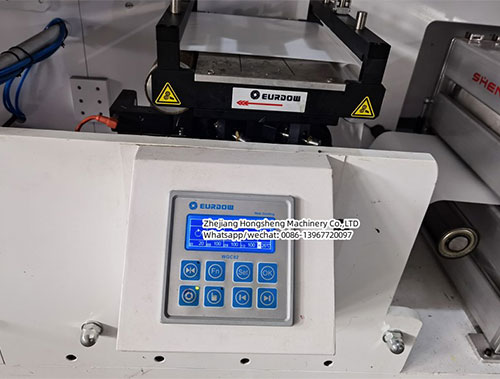

Precision of Web Guiding |
± 0.02 mm |
|
Thickness of Flexo Plate |
1.7 mm/1.14mm |
|
Power |
380 V (50 Hz, 3 phases) |
|
Pressure |
0.8MPA |
|
Turn Bar |
Hongsheng |
China |
1SET |
|
IR Dryer |
1SET/Each Station |
||
|

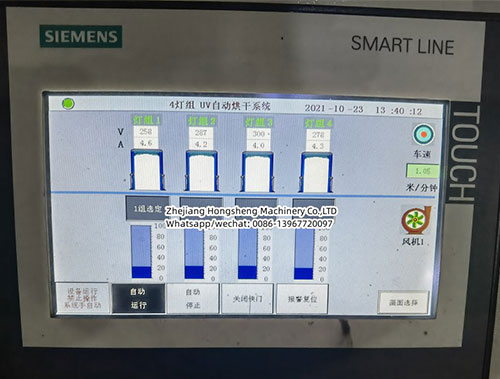

UV Dryer |
1SET/Each Station |
||
|
Ceramic Anilox |
1PCS/Each Station |
||
|
Ink Roller |
1PCS/Each Station |
||
|
Ink Pan |
1PCS/Each Station |
||
|
Plate Cylinder |
2PCS/Each Station |
||
|
Impression Roller |
1PCS/Each Station |
||
|
Horizontal Adjust Handle Wheel |
1PCS/Each Station |
||
|
Rotary Die Cutting Station(Optional) |
1SET |
||
|
Waster Rewinding Station(Optional) |
1SET |
||
|
Lamination Device (Optional) |
1SET |
||
|
Ceramic Corona |
|
|
1SET |
|
Video inspecting (Optional) |
|
|
1SET |
Terms of Payment: 30% deposit before production and 70% balance payment before shipment by T/T
Time of Delivery: Within 45 days after receipt of advanced 30% payment .
Packing: Export-standard and sea-worthy packing
Warrantee period: One year for electric parts (But not contain quick wear parts). The service is for whole life. Once you asked the spare parts, we can send immediately, but courier fee will be paid by you.
