HSS-320-1C Flexo Printing Machine
HSS-320-1C Flexo Printing Machine

1 color Stack flexo printing press

Model: HSS-320-1C

HSS-320-1C flexo label printing machine, with single-color printing capability, equipped with three die-cutting stations. Equipment with IR dryer, and UV dryer is optional.

Online Inquiry
Product
Description

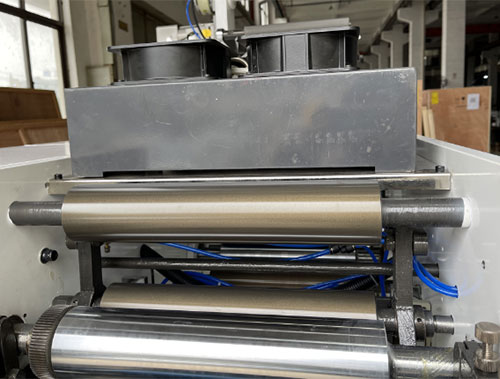

Each printing station has one IR dryer.

UV dryer can be optional.

Working principles:

Unwinding→Web guide→Printing Unit→IR/UV dryer→Cold foil (optional) →Die Cutting →Waste →Rewinding

Technical
Parameters
Specifications

Model

HSS-320-1C-3D

Max.Web Width

320mm

Max.Printing Width

310mm

Printing Length

177.8-368.3mm/206-460mm/238-539mm

Max.Unwinding Diameter

600mm

Max.Rewinding Diameter

600mm

Max.speed

80m/min

Precision of Chromatography

± 0.1mm

Precision of Web Guiding

± 0.02 mm

Thickness of Flexo Plate

1.7 mm/1.14mm

Power

380 V (50 Hz, 3 phases)

Pressure

0.8MPA



Configuration

IR Dryer

1SET/Each Station

UV Dryer (optional)

1SET/Each Station

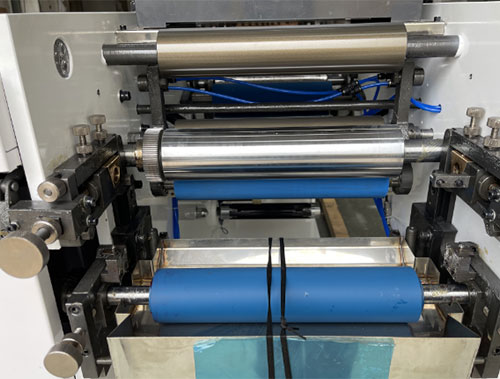

Ceramic Anilox

1PCS/Each Station

Ink Roller

1PCS/Each Station

Ink Pan

1PCS/Each Station

Plate Cylinder

2PCS/Each Station

Impression Roller

1PCS/Each Station

Horizontal Adjust Handle Wheel

1PCS/Each Station

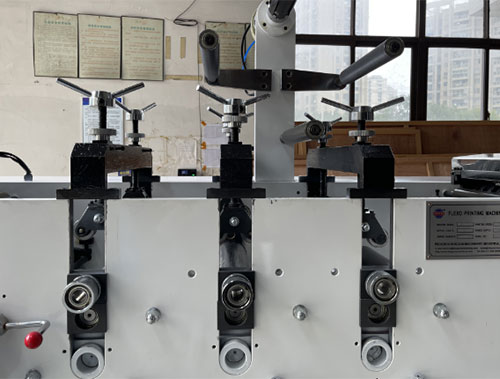

Rotary Die Cutting Station

3SETS

Waster Rewinding Station

1SET



FAQ

Terms of Payment: 30% deposit before production and 70% balance payment before shipment by T/T

Time of Delivery: Within 45 days after receipt of advanced 30% payment .

Packing: Export-standard and sea-worthy packing

Warrantee period: One year for electric parts (But not contain quick wear parts). The service is for whole life. Once you asked the spare parts, we can send immediately, but courier fee will be paid by you.
