CFLEX-370/450/530 HongSheng CFLEX Converting Line
CFLEX-370/450/530 HongSheng CFLEX Converting Line

UV Flexo Printing Machine

Model: CFLEX-370/450/530

UV Label Flexo Printing Machine adopts the latest servo control system, each unit is driven by one servo motor  which ensure the accurate registration during high speed running.

Online Inquiry
PDF Download
Product Description
Technical Parameters
Product Display
Recommended Products
Product
Description

Printing cylinder adopts pillow installation, material is aluminum alloy, high-precision helical gear transmission, simple and easy operation.

Printing and ink transfer pressure adjustment: printing roller adopt rolling pillow , only need to fine-tune the corresponding support frame on both side. When change new printing cylinder no need big adjustment, some special printing requirement also only need a little fine-tuning, the printing efficiency greatly improved.

Anvil roller equips with water chiller, ensure not affect by UV curing temperature when printing film material.

Unwinding unit equips with corona, dust, static electricity system. ensure the stability before printing.

Printing process equipped with high precision web-guiding

System and video inspecting system, to provide higher protection when label printing.

Machine option with LED-UV, energy conservation and ervironmental protection.

Double material road design.

Printing unit is intercalation design , can interchange to offset unit.

Technical
Parameters
Model CFLEX-370 CFLEX-450 CFLEX-530
Max.mechanical speed 150m/min 150m/min 150m/min
Max. Printing width 340mm 420mm 520mm
Max. web width 350mm 430mm 530mm
Max. unwind diameter 1050mm 1050mm 1050mm
Max. waste diameter 900mm 900mm 900mm
Max. repeat length 254-609.6mm (80T-192T) 254-609.6mm (80T-192T) 254-609.6mm (80T-192T)
Loading method Flower Flower Flower
Horizontal overprint adjustment Motor driven Motor driven Motor driven
Vertical overprint control Servo driven Servo driven Servo driven
Color Pre -register Semi-Automatic Semi-Automatic Semi-Automatic
Power supply 380V/AC ±10% 380V/AC ±10% 380V/AC ±10%
Fast changing ink system Ink swift change Ink swift change Ink swift change
Hot air drying Optional Optional Optional
Cold foil (movable) Optional Optional Optional
Turn bar (movable) Standard Standard Standard
Overall dimensions (L×W×H) 11m×1.6m×2.5m 11mx1.68mx2.5m 11mx1.82mx2.5m
Product Display

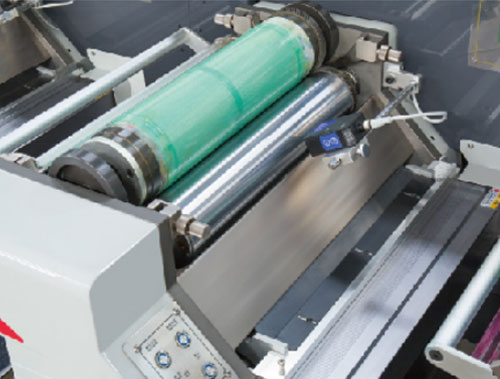

Flexo Unit

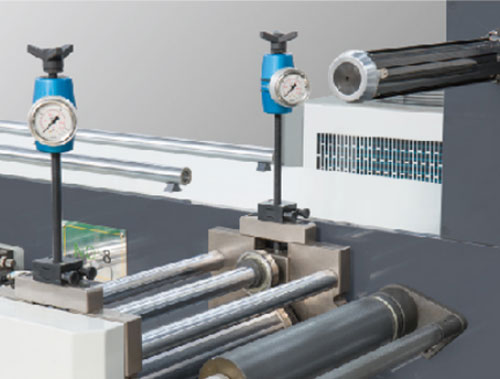

Unwinding Unit

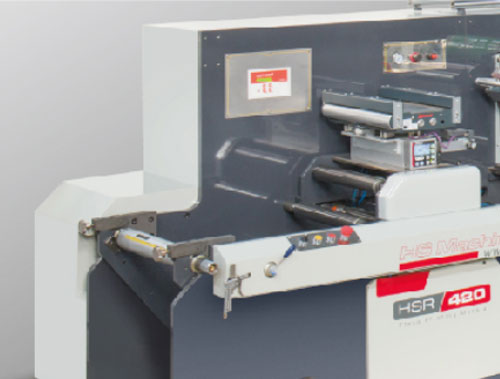

Die Cutting Unit

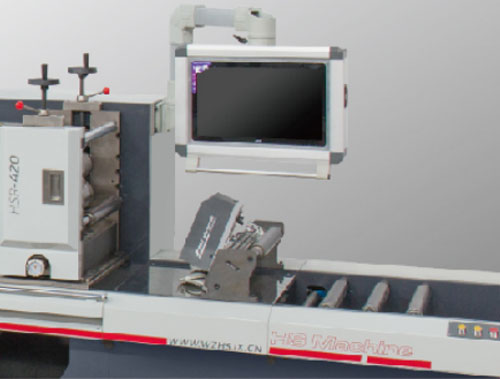

Rewinding Unit
