Multicolor Flexo Label Printing Machine
Multicolor Flexo Label Printing Machine

Multicolor Flexo Label Printing Machine

Model: CFLEX-340-9C-2D

Flexo Label Printing Machine, Single servo motor with 9 colors, Yaskawa system, Printing unit of the flexo printing machine adopt 360º to regulate for registration.

Online Inquiry
PDF Download
Product Description
Technical Parameters
Product Display
Recommended Products
Product
Description
Technical
Parameters

Max.Web width

350mm

Max.printing width

340mm

Max.Unwind Diameter

1050mm

Max.Rewind Diameter

1050mm

Max.printing speed

150m/min

Printing Precision accuracy

±0.1mm

Rotary die cutting accuracy

±0.15mm

Rang of printing

10”-24”

Plate thickness

1.14mm

Max.label die cutting speed

100m/min

Pre –registration

Datelogic  Color sensor

Material

All  materials except shrink film

Thickness of material

0.02mm—0.35mm

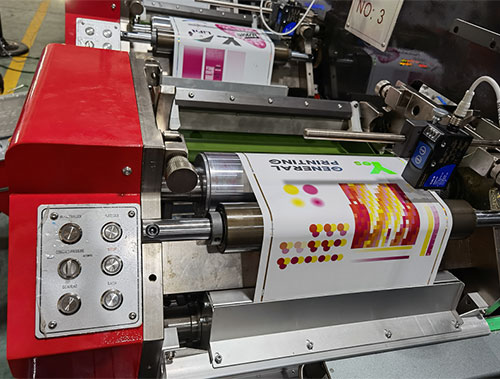

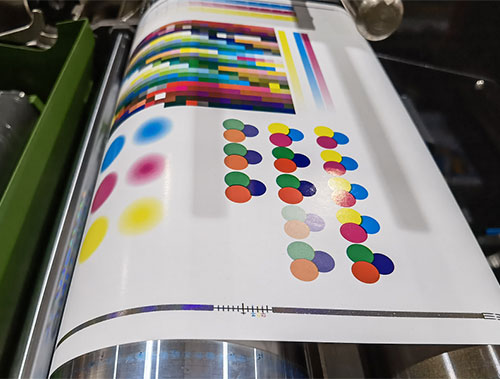

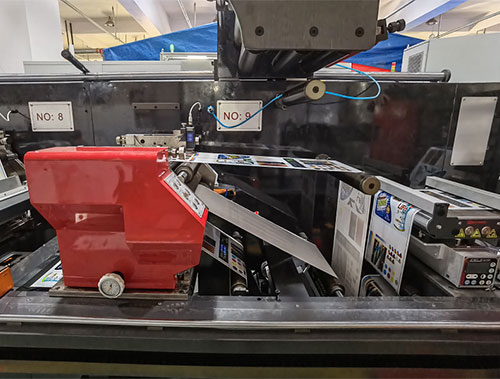

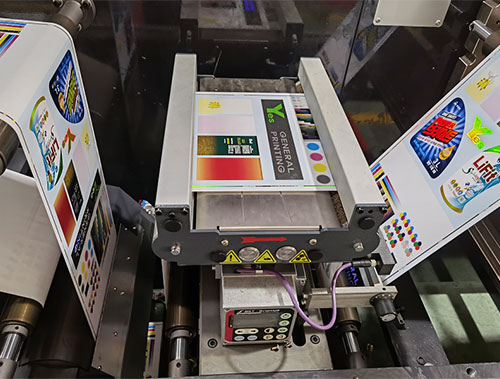

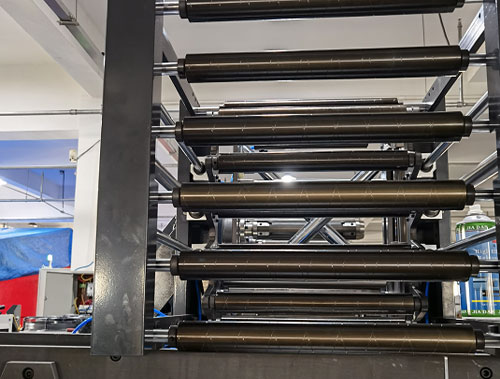

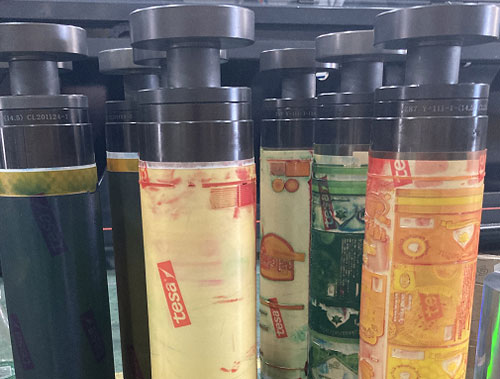

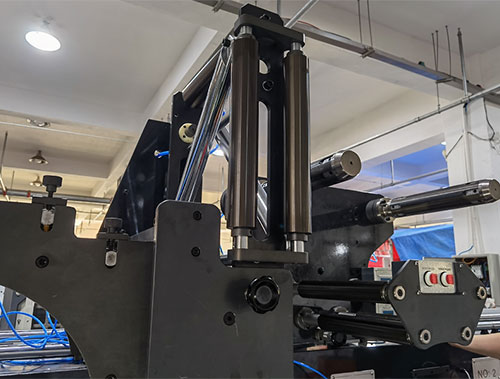

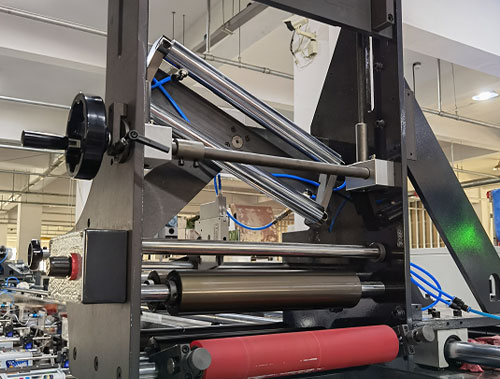

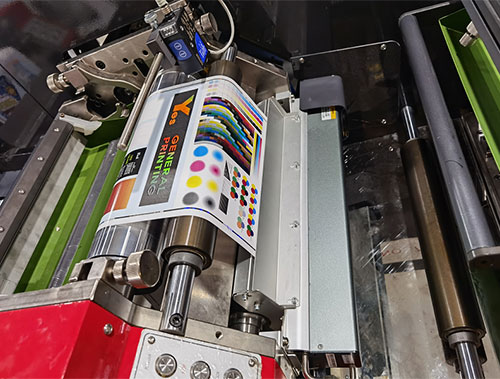

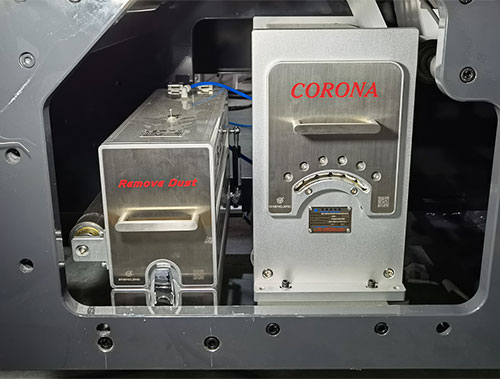

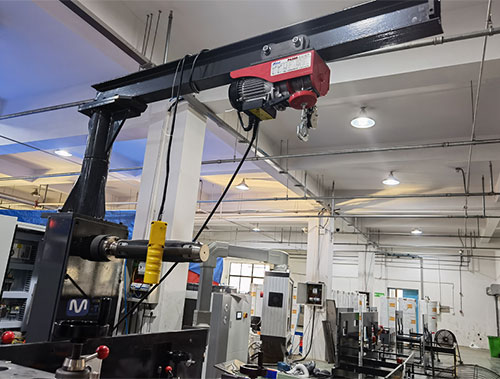

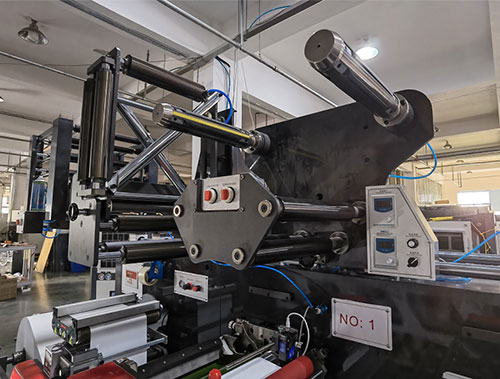

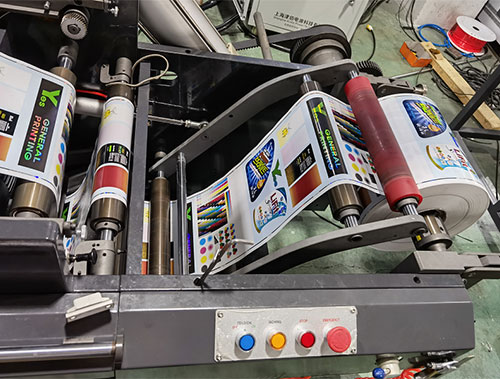

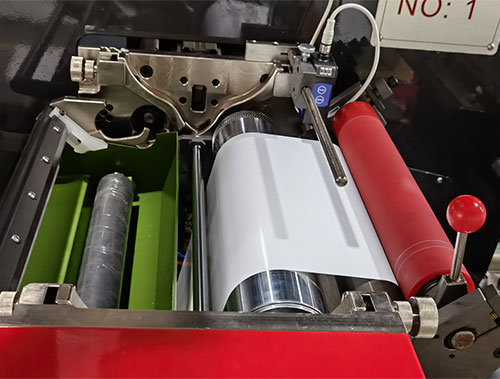

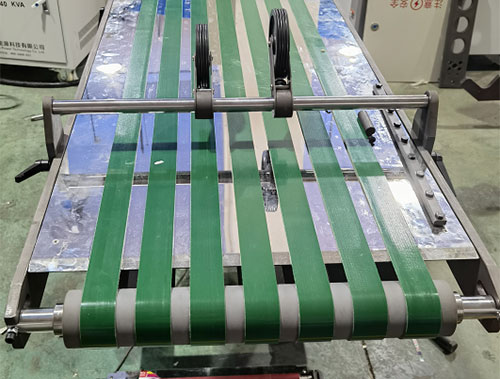

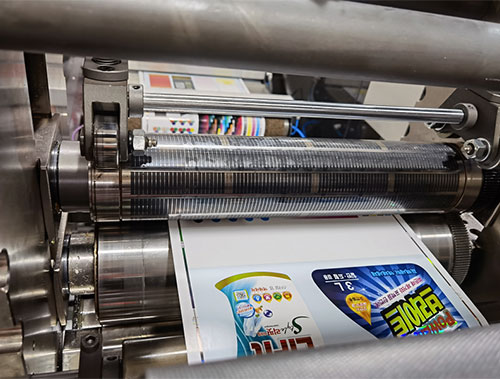

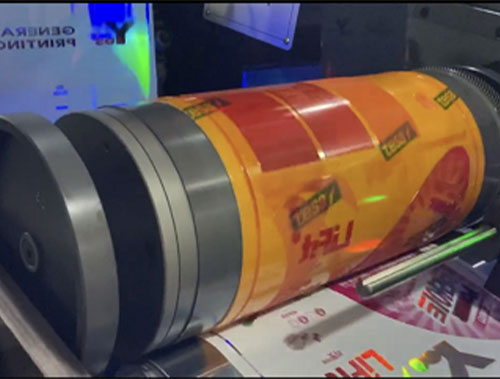

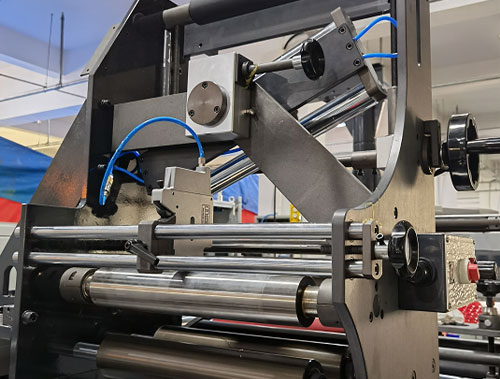

Product Display
